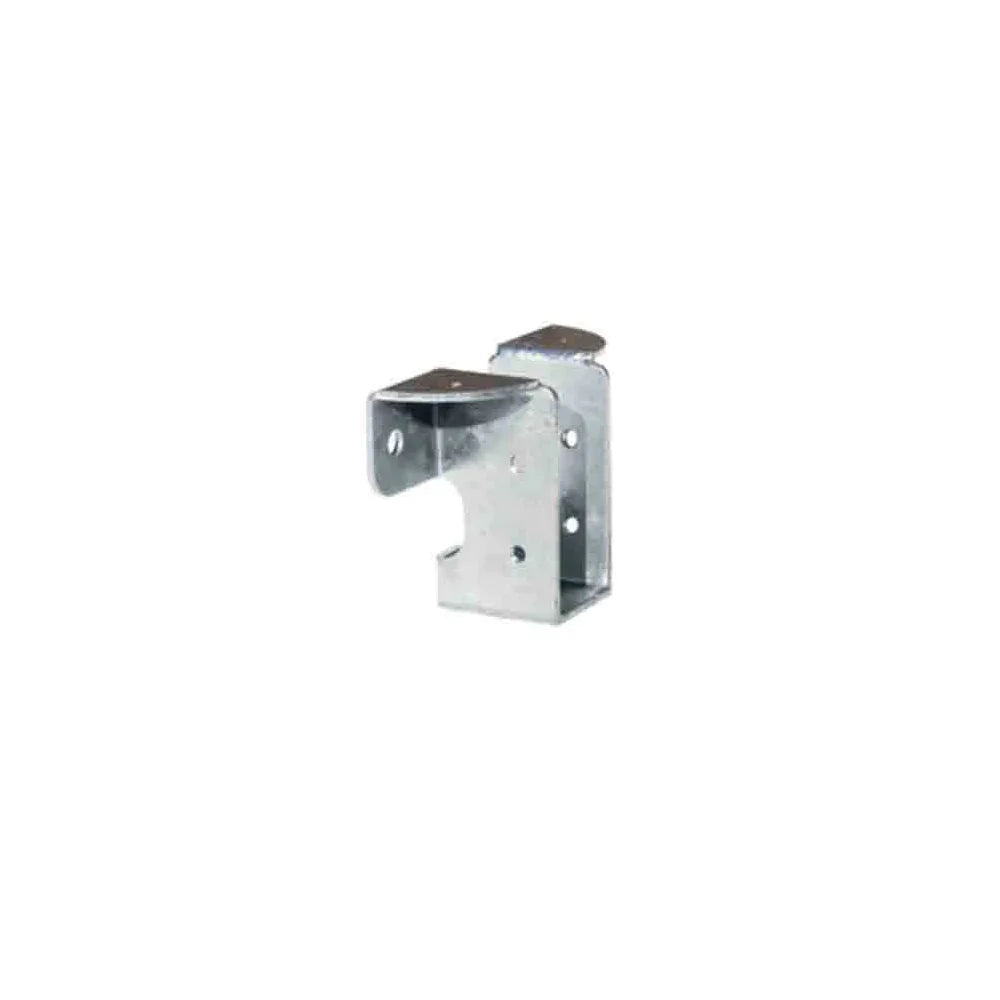

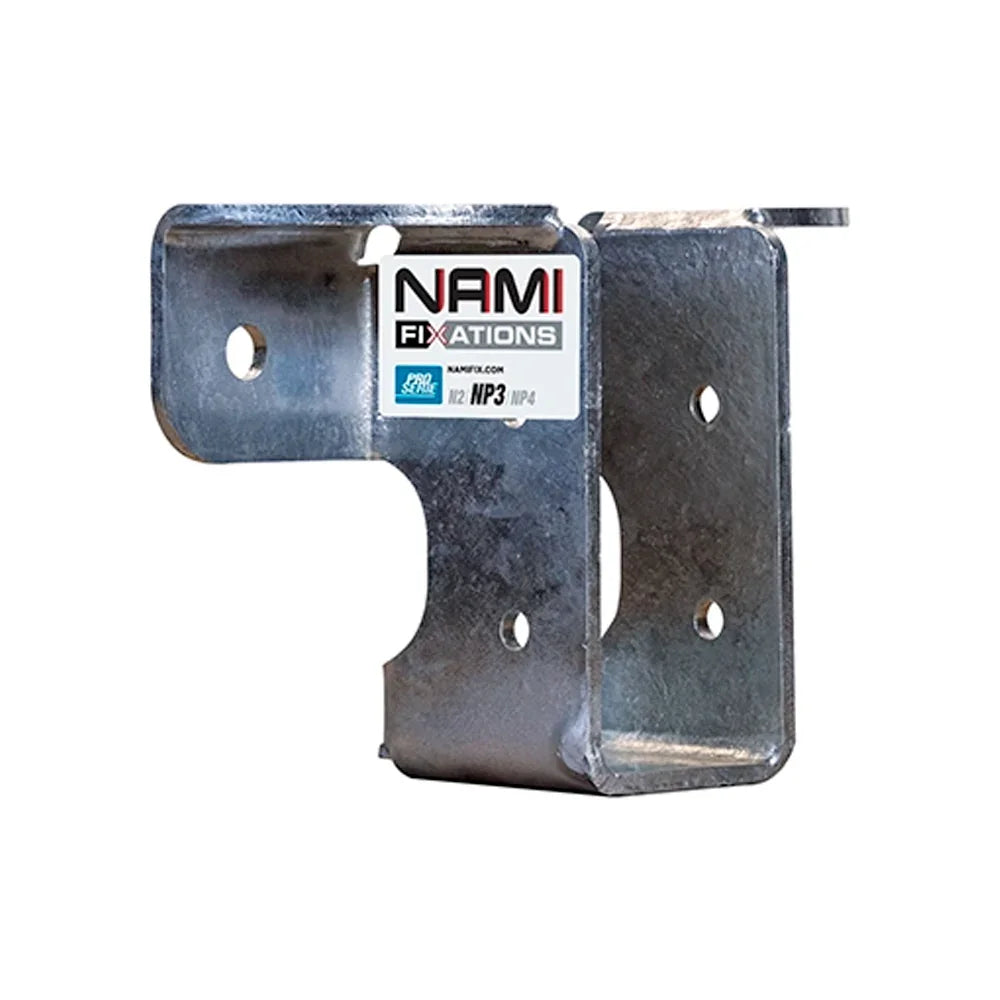

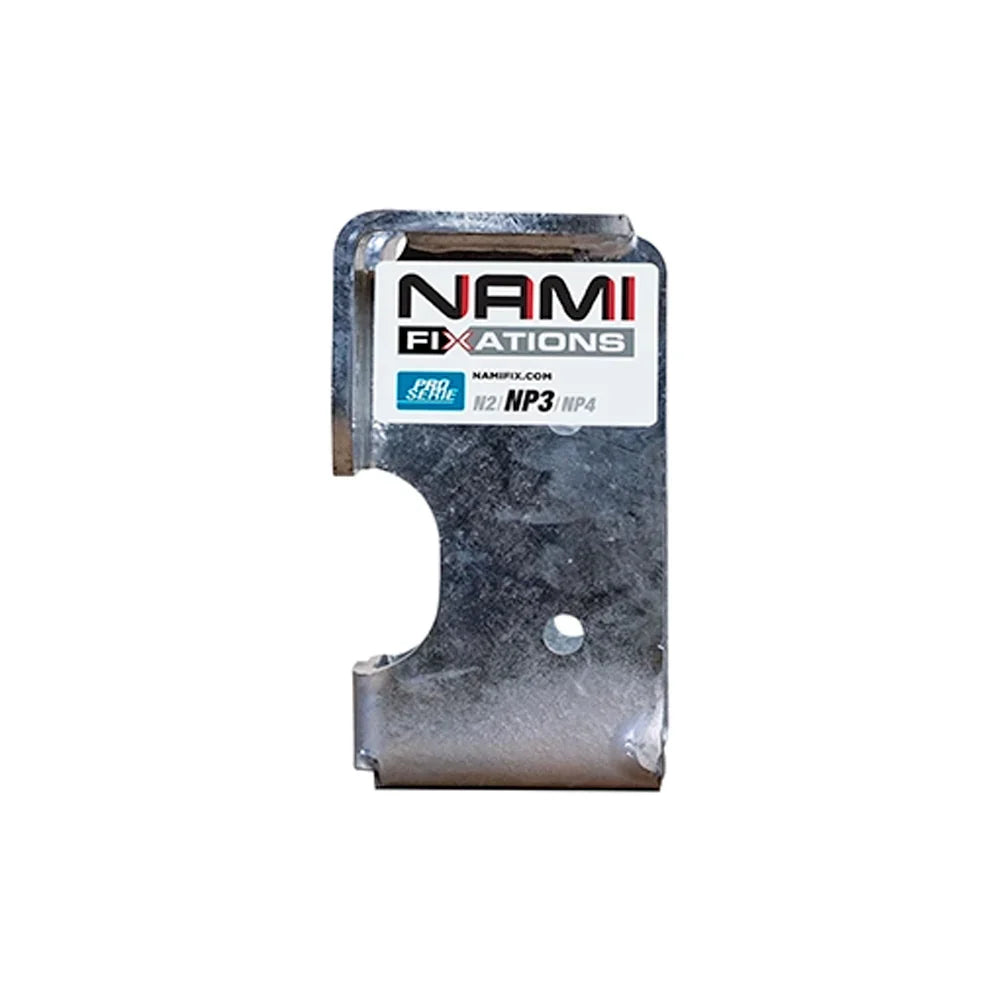

Namifix deck support bracket - NP3
Namifix deck support bracket - NP3 is backordered and will ship as soon as it is back in stock.
Namifix deck support bracket - NP3
Description
Description

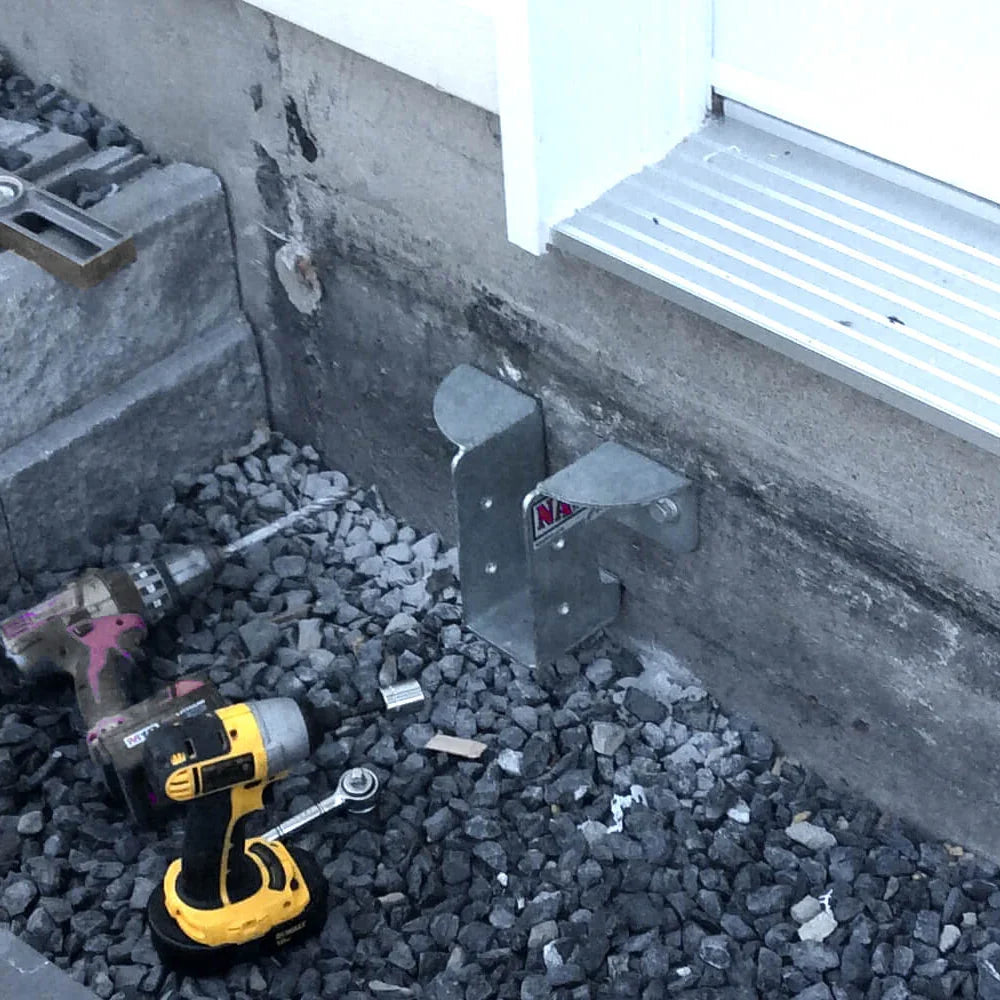

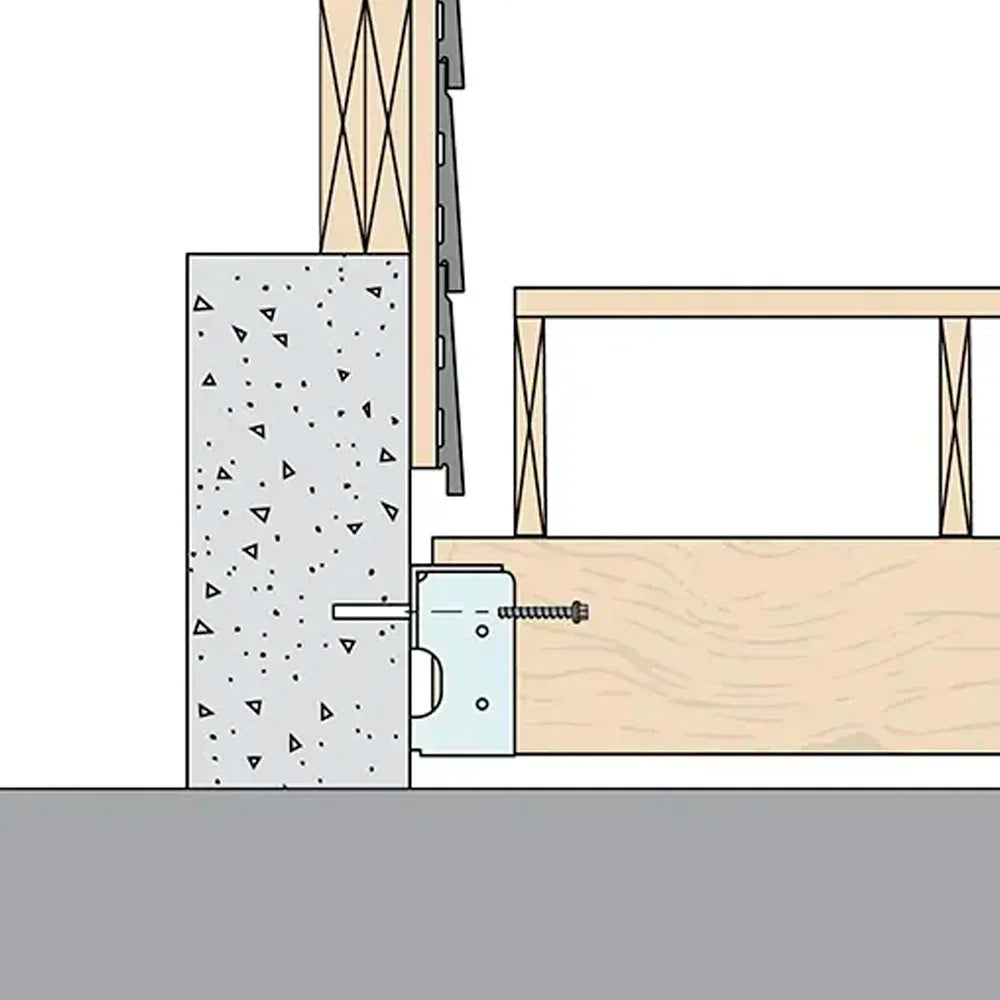

Professional quality patio bracket able to sustain a 3000 lb load. It is secured directly to the foundation, and the beam is placed perpendicular to it (see illustration). The part is hot-dip galvanized to withstand northern conditions.

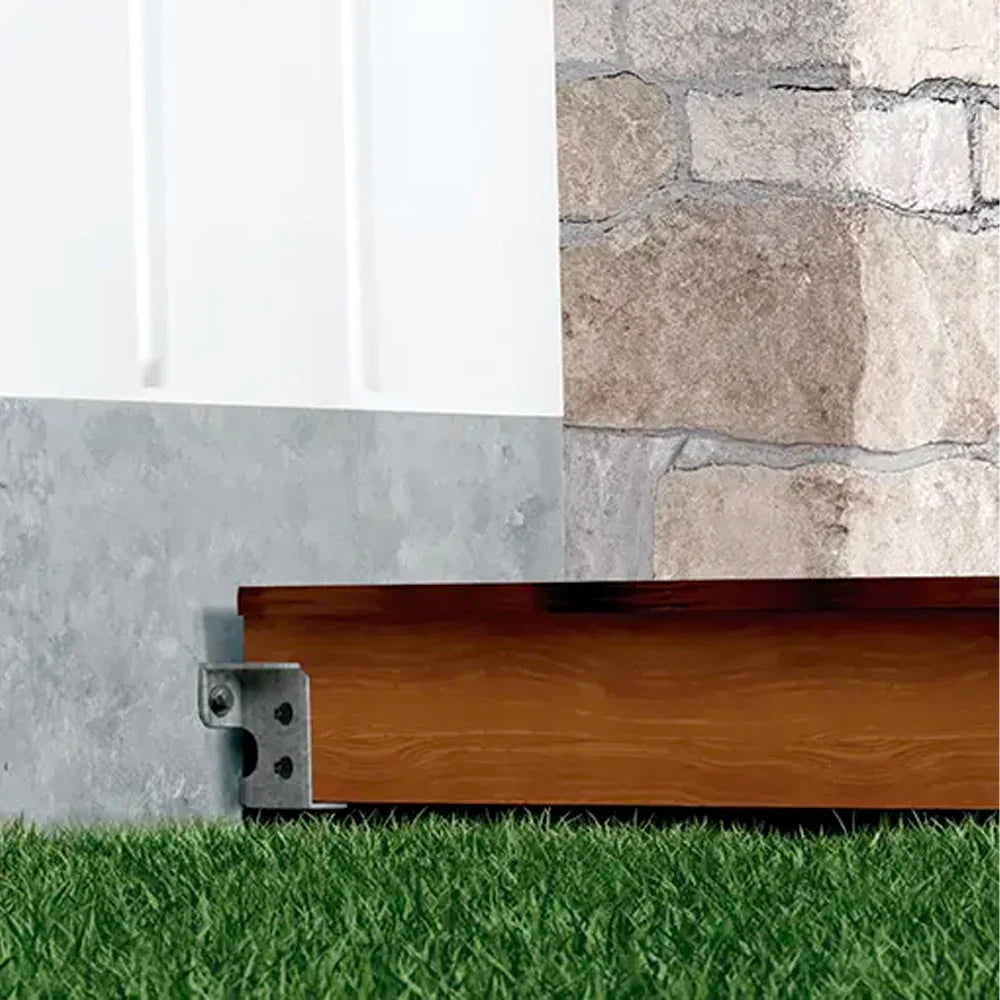

Limit the impact to your home. The NP3 model allows the terrace to be installed close to the ground with its anchors on either side of the beams’ base. Also it limits damage to the cladding or to the isolation of ICF homes (Insulated Concrete Forms). It is therefore no longer necessary to cut along the whole length of the patio. The NP18 model limits the risk of breakage and water ingress by inserting only the end of the beam through the cladding.

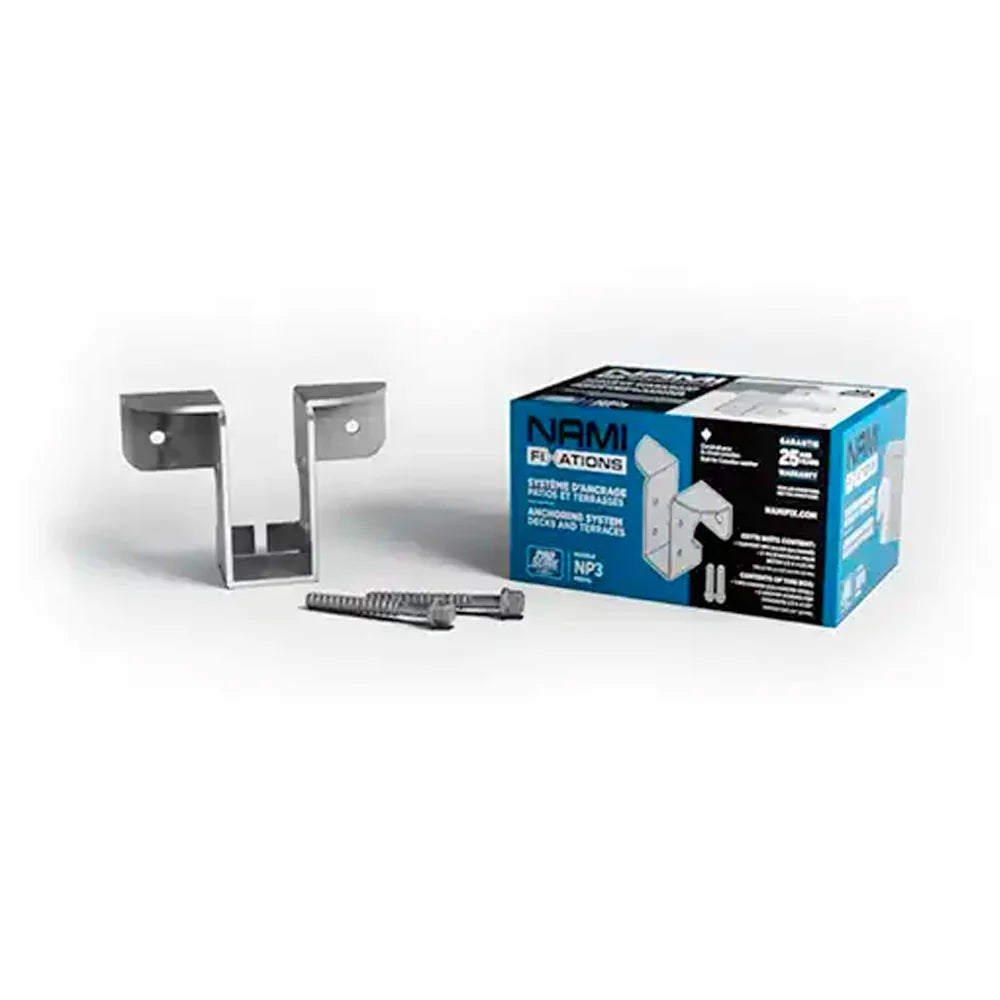

Hardware: 2 X Hilti 1/2″ x 4 1/2″ HUS Screw anchors included.
For the hole, use a 1/2″ x 6″ drill bit.
**The bracket’s 3000lb certification is dependent on the use of these anchors.**
