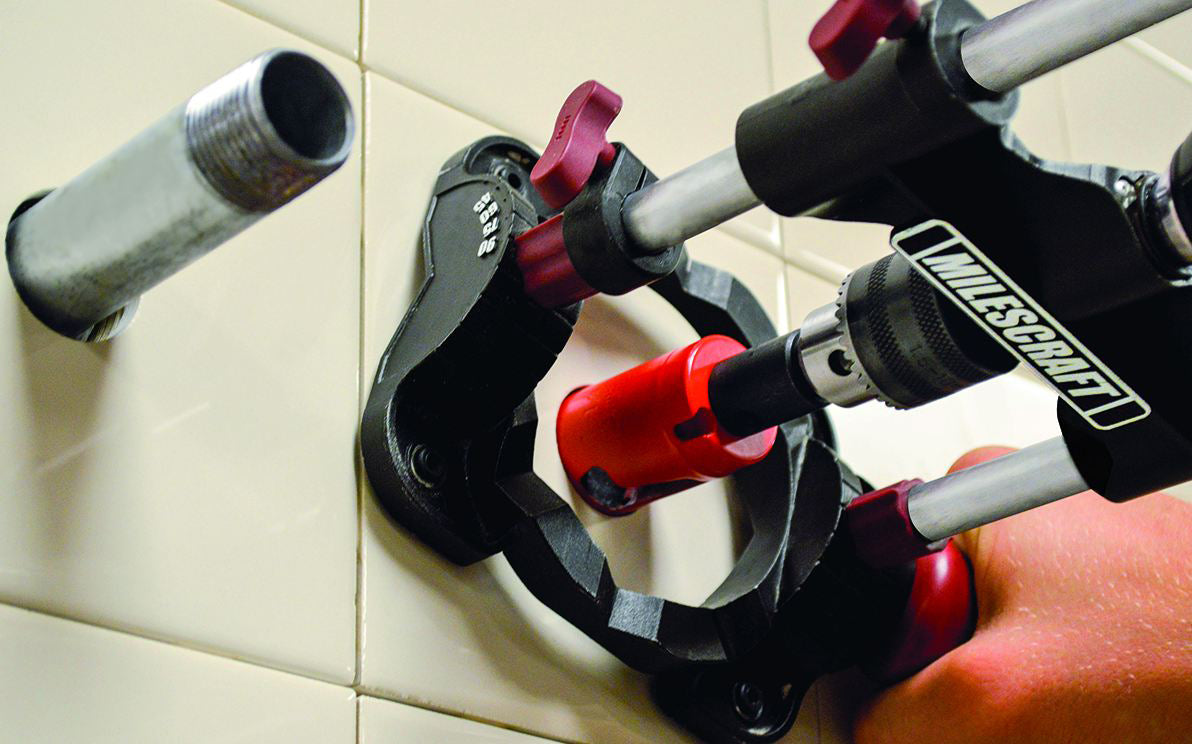

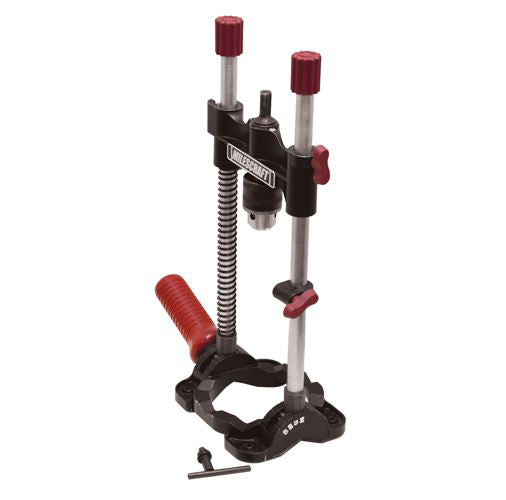

The Milescraft AccuDrillMate Is a portable drill stand for use almost anywhere. Drill straight holes all the time! With the AccuDrillMate you can drill straight or angled holes, drill on the edge of a board or even round stock. Compatible with 3/8” and 1/2” power drills and works with most 3/8” drill accessories. This all metal construction AccuDrillMate provides the precision of a drill press with the ease of a hand drill.

To download the instruction manual, click here >

Specifications :

• Chuck : 3/8" keyed
• Drill bit clearance : maximum 8.88"
• Drill head clearance with spring and depth stop : Max travel : 6.23" / Minimum drill bit length : 2.65"
• Drill head clearance without spring and depth stop : Max travel : 8.15" / Minimum drill bit clearance : 0.73"
• Compatible with 3/8" and 1/2" power drills

Features :

• Metal head with fixed depth stop and easy-glide bearings :
  • Fast attachment of drill
  • Smooth operation with high precision
  • Fixed positioning of drill height

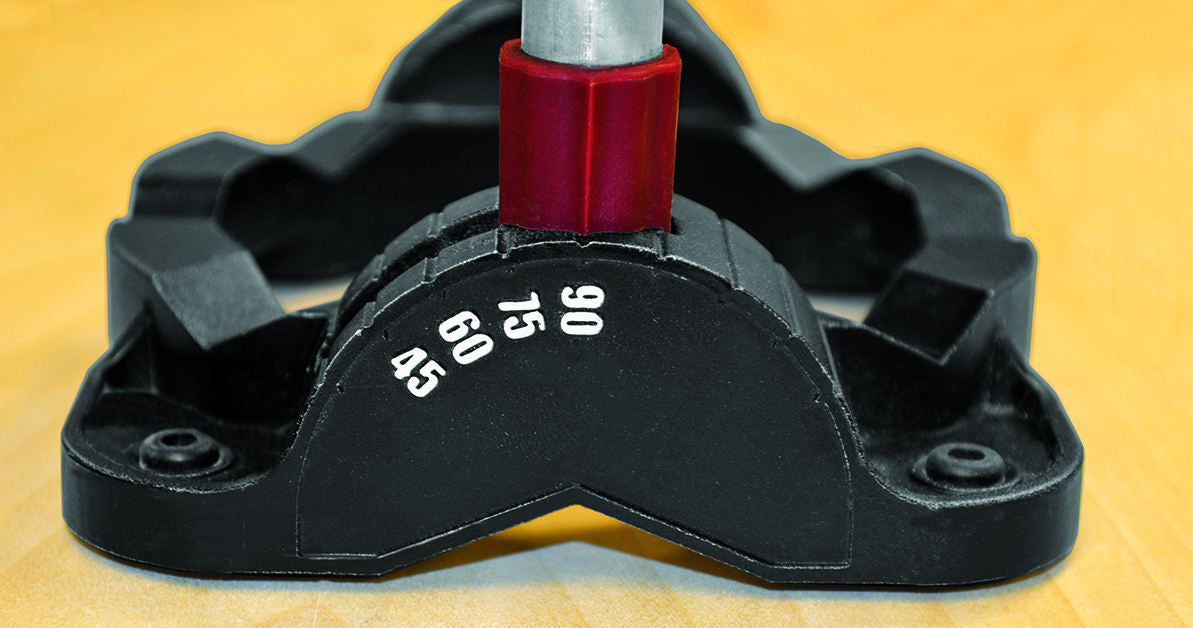

• Metal base with scale, V-grooves, mounting holes and rubber feet :
  • Easy to read angles

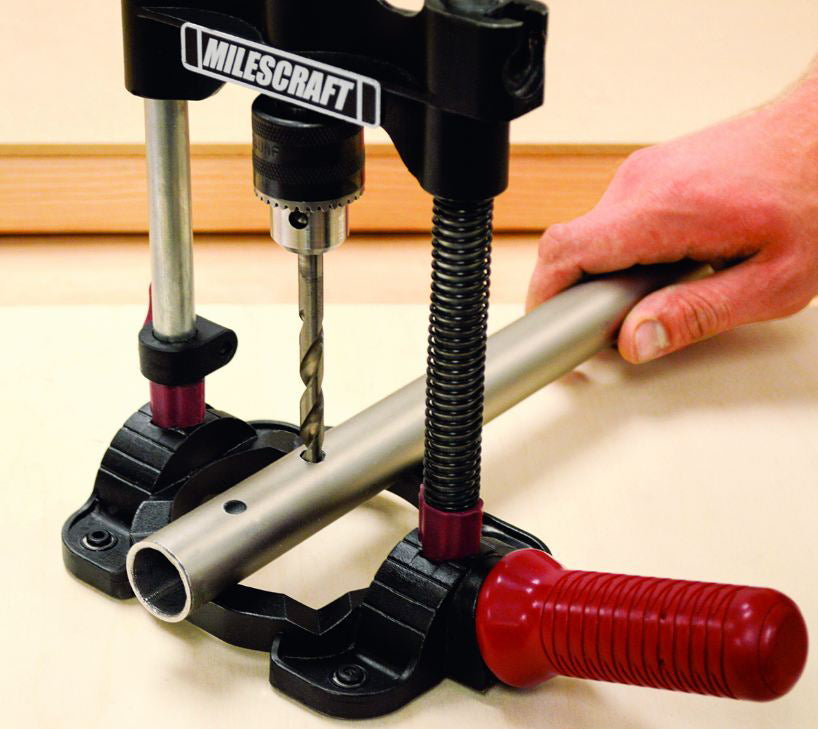

  • Centering of round materials
  • Self-centering bottom
  • Permanent mounting with screws possible
  • Non-slip base when used with feet

• Solid steel rods with angle adjustment knobs :
  • No deflection
  • Easy adjustment of angle settings

• Metal angle adjusters :
  • Interlock with metal base for secure angle drilling

• Adjustable depth stop :
  • Precise depth for repetitive drilling

• Spring :
  • Controlled drilling
  • Prevents cutting tool from hitting work piece

• Auxiliary handle :
• Can be mounted in fixed position on the base or on the metal guide head to support drilling motion
