Spoilboard surfacing and mortising bit shank 1 ¼’’ x 1/4’’ #16-106 - Freud
Spoilboard surfacing and mortising bit shank 1 ¼’’ x 1/4’’ #16-106 ...
Description
Description

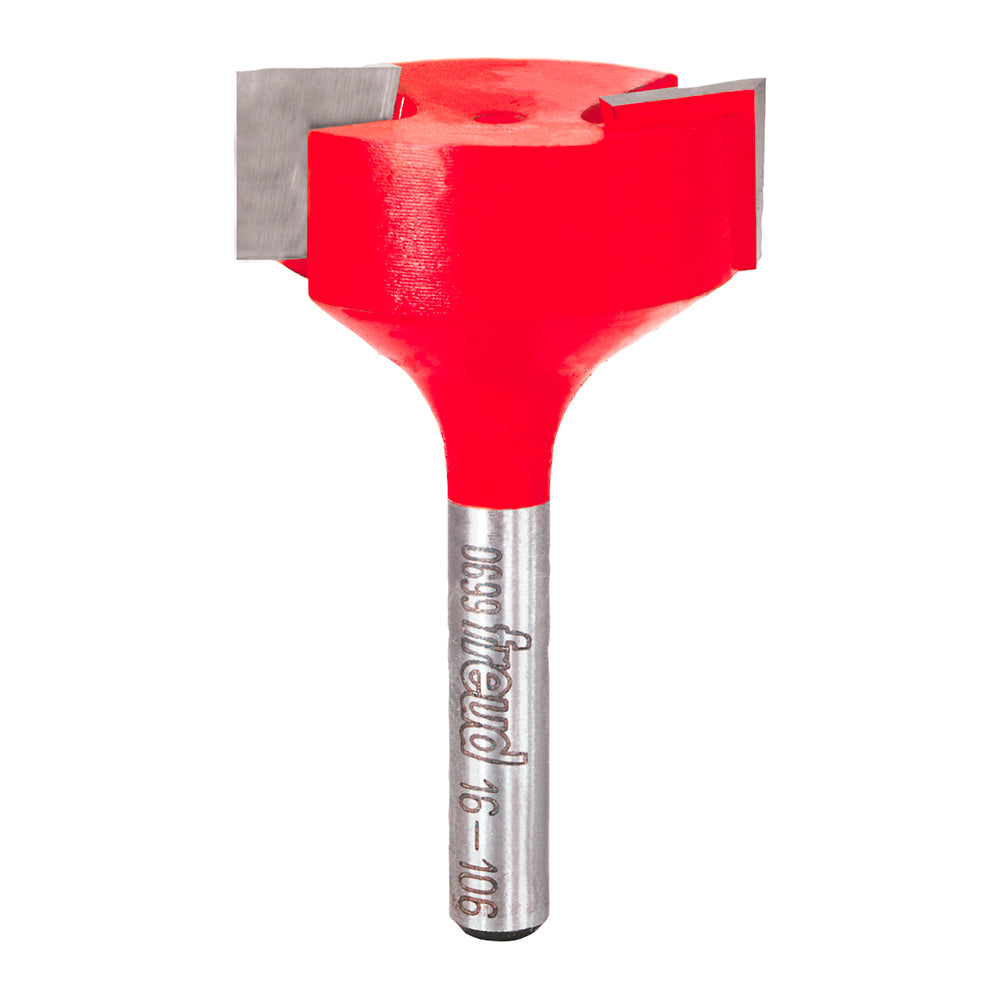

Spoilboard surfacing and mortising bit shank 1 ¼’’ x 1/4’’ #16-106 - Freud

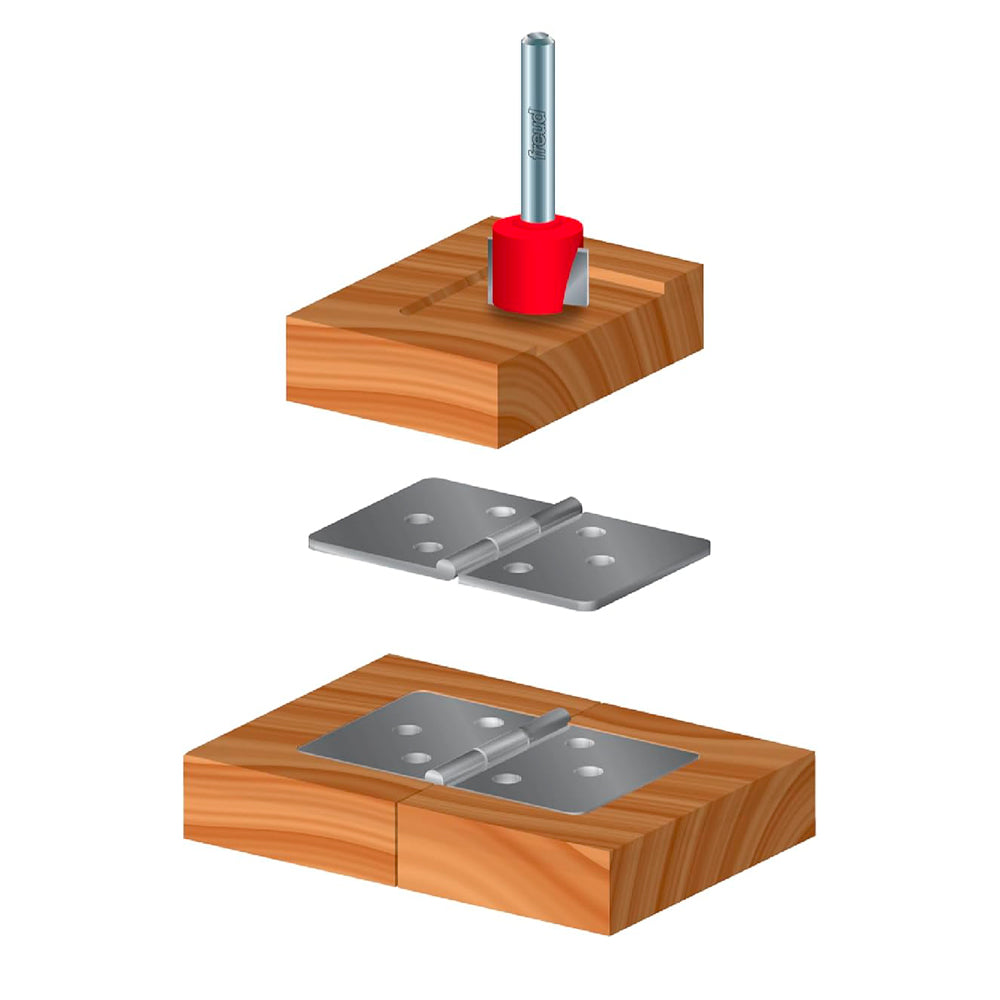

Freud Mortising Bits are designed to deliver clean, precise, splinter free mortises in plywood, veneer, solid wood or almost any composite material. Most of these bits feature a down shear design that helps eliminate splintering by pushing wood fibers down during the cut. Ideal for mortising hinges and hardware, or cutting grooves and dadoes. This bit is also ideal for keeping your CNC router’s spoilboard perfectly flat for the utmost accuracy in your projects. These bits are designed with deep center gullets for maximum material removal without chip loading. Use for mortising in any CNC or portable router, or for spoilboard surfacing in any CNC machine.
- Down shear design on most bits for clean top surfaces
- Deep center gullets for fast chip removal
- Use on CNC, hand-held and table-mounted portable routers
- Available with top bearings to suit popular routing jigs
- Freud Perma-SHIELD® Coating
- Ideal for spoilboard surfacing

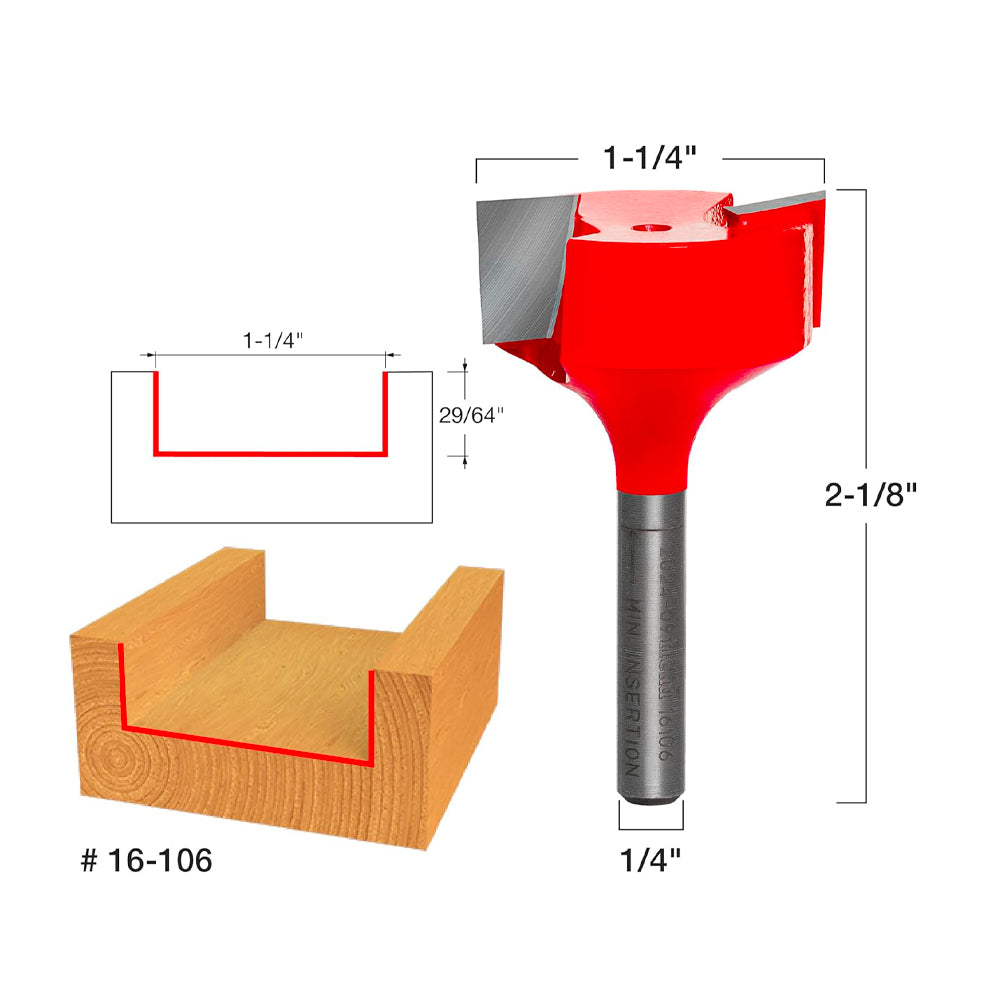

- Number of Cutters 2
- Max RPM 18000
- Carbide Height (h) 29/64"
- Overall Dia. (D) 1-1/4"
- Overall Length (H) 2-1/8"
- Shank Dia. (A) 1/4"
