8" x 13" Variable Speed Wood Lathe
$289.00
/ each
Unit price
$
/ each
/
Unavailable
Code: 719-3KWL813VS
8" x 13" Variable Speed Wood Lathe is backordered and will ship as soon as it is back in stock.
In stock
(5)
Parcel shipping
Parcel shipped within 1-2 business days
Shipping costs vary depending on your order total. The exact costs will be confirmed at the checkout stage.
For more details
Delivery by truck
Delivered in 3 to 10 days
We will contact you within 24 business hours to schedule your delivery.
- Zone 1: Metropolitan Montreal - $85
- Zone 2: Surroundings of Montreal - $120
- Out of zone: Depending on the destination
The exact charges will be confirmed to you at the payment stage.
For more details
In-store pickup
Free, ready in 24 to 48 working hours
Please wait to receive your confirmation email before coming to the store to collect your order.
For more details
8" x 13" Variable Speed Wood Lathe
$289.00
/ each
Unit price
$
/ each
/
Unavailable
Description
Description
King Canada KWL-813VS variable speed wood lathe contains:
- High performance 1/3 HP (300 Watt) DC motor
- Ideal for pens and other small detailed turnings
- All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
- 8" inboard swing for bowl turning
- Maximum turning capacity of 13" between centers

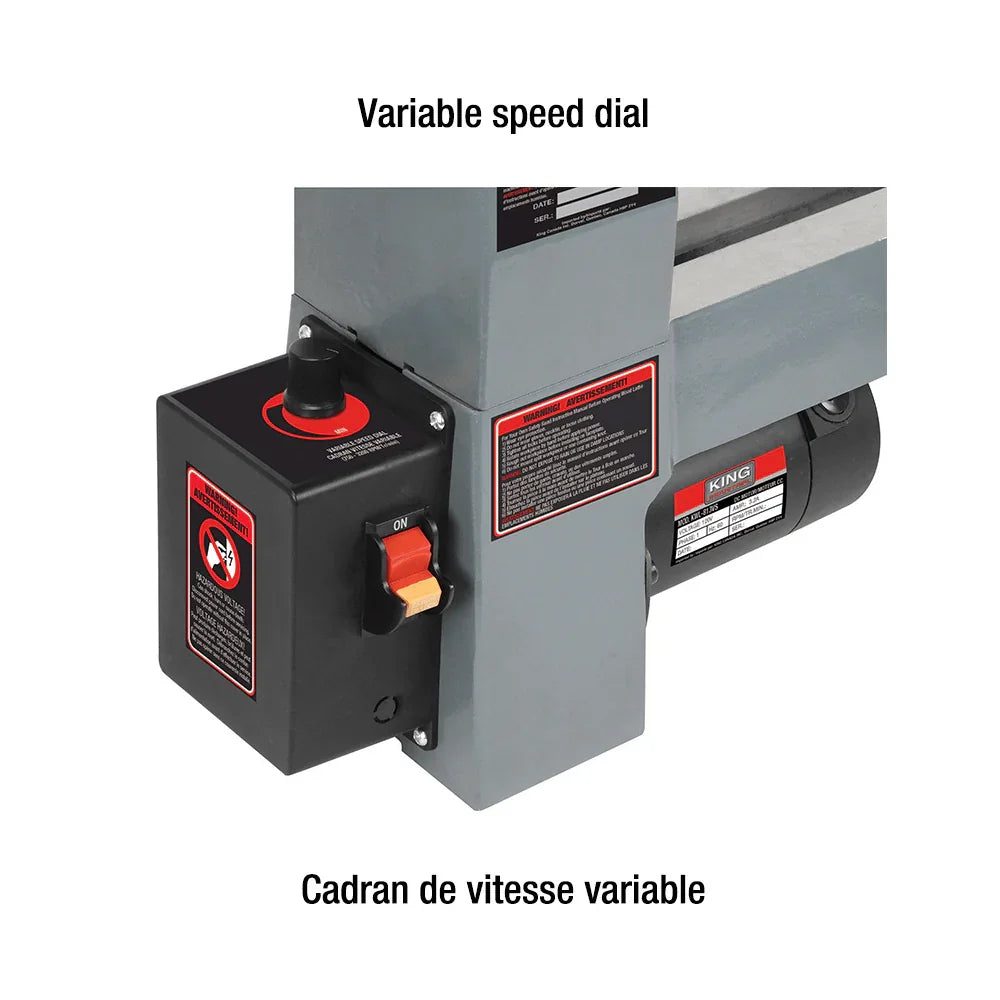

- Variable speed range of 750 to 3200 RPM
- Chrome plated handwheels on both the headstock and tailstock

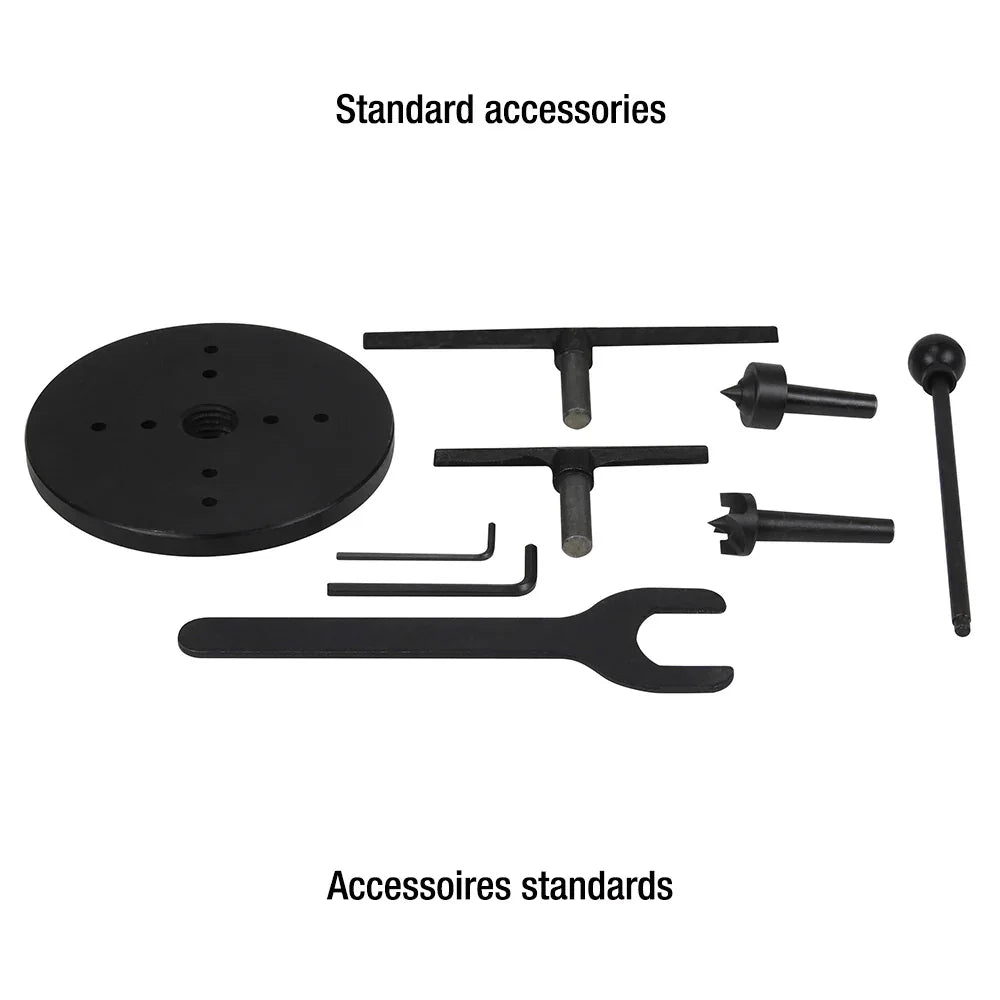

- Complete with 4-1/4" and 7" tool rests with 1/2" post diameter, 5-3/4" faceplate, MT#1 live center, MT#1 spur center, steel knock-out bar, adjustment keys and hex. keys
Specifications
Model: KWL-813VS
Swing over bed: 8"
Swing over tool post base: 5 1/4"
Distance between centers: 13"
Spindle size (rh thread): 1" x 8 tpi
Spindle bore: 3/8"
Variable speed range: 750 - 3200 rpm
Headstock, tailstock taper: MT #1
Tailstock travel: 1 9/16"
Dc motor: 1/3 hp, 3.2 amp., 4,600 rpm
Voltage: 120v, 1 phase, 60 hz
Assembled dimensions (l x w x h) / weight: 27 3/4" x 10" x 12 1/4" / 42 lbs
Package dimensions (l x w x h) / weight: 28" x 13 1/4" x 7 5/8" / 47 lbs
